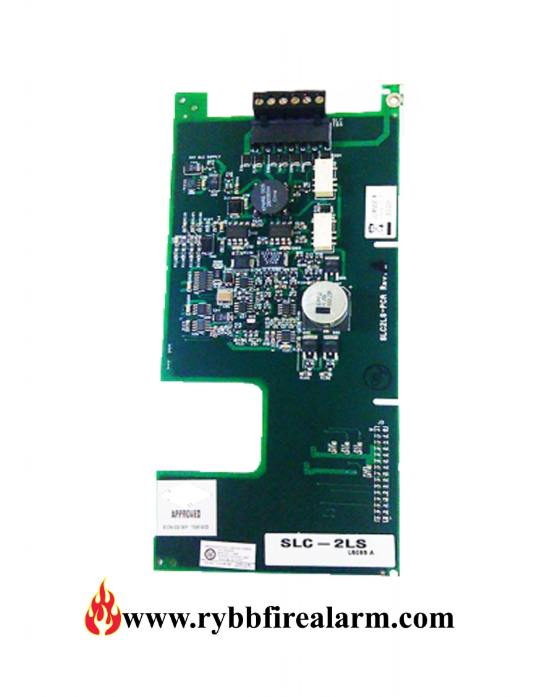

Fire-Lite SLC-2LS Loop Control Module

Fire-Lite SLC-2LS Loop Control Module (REFURBISHED)

Once you have replaced your panel, please send us the damaged one. To receive a core return refund in the amount of $55.00. Or send us the broken parts to repair. We repair for ($150.00) a fraction of the sale price.

Fire•Lite’s MS-9600LS(E) and MS-9600UDLS(E) are compact, cost-effective, intelligent, addressable Fire Alarm Control Panels. With an extensive list of powerful features. The combination of Fire•Lite’s newer series devices and legacy 300 Series devices. Along with the MS-9600LS(E) or MS-9600UDLSE FACP, offer the latest fire protection technology. LiteSpeed™ is a patented technology that polls 10 devices at a time looking for new or different information.
When new information is found at a specific address, the system polls that device several times for any new data. This improvement allows a fully loaded panel with up to 636 devices to report an incident and activate the notification circuits in under 10 seconds. With this new polling scheme, devices can b e wired on standard twisted, unshielded wire up to a distance of 10,000 feet per loop. Each Signaling Line Circuit (SLC) loop supports up to 159 addressable detectors, including photoelectric, photoelectric with heat, beam, ionization, photoelectric duct, fixed heat, fixed heat with rate-of-rise, and fixed high-heat detectors. It supports up to 159 addressable modules, including monitor (two-wire detector, normally open devices), dual-monitor functions (two monitor circuits from one module, two addresses used), multimonitor (multiple monitor circuits from one module, multiple addresses used), control (for Notification Appliance Circuits), and relay
(two Form-C) modules.

Datasheet
